| PART NO. |
PARTS NAME |
QTY. |

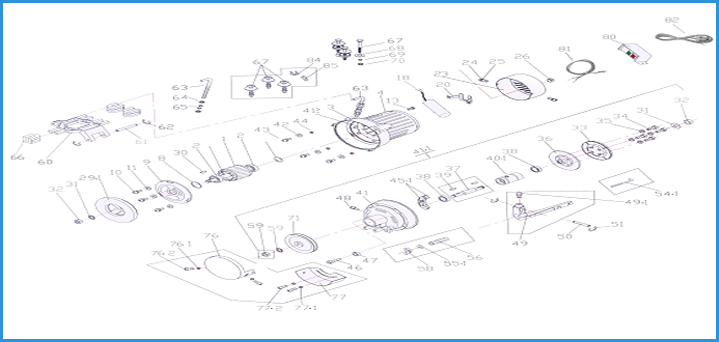

Typical View |
| 01 |
Rotor |
01 |
 |
| 02 |
Ball Bearing |
02 |
 |
| 03 |
Frame |
01 |
 |
| 08 |
Wave Washer |
01 |
 |
| 09 |
Centre Bracket |
01 |
 |
| 10 |
Set Screw for No.9 |
03 |
 |
| 11 |
Washer for No.9 |
03 |
 |
| 12 |
Stator |
01 |
 |
| 13 |
Set Screw for Earth |
01 |
 |
| 18 |
Capacitor |
01 |
 |
| 20 |
Capacitor Band |
01 |
 |
| 21 |
Set Screw for No.20 |
01 |
 |
| 23 |
End Cover |
01 |
 |
| 24 |
Set Screw for No.23 |
02 |
 |
| 25 |
Washer for No.23 |
02 |
 |
| 26 |
Rubber Grummet |
01 |
 |
| 29.1 |
Fly Wheel |
01 |
 |
| 30 |
Woodruff Key for No.29-1 |
01 |
 |
| 31 |
Washer for No.29.1 , 36-3 |
01 |
 |
| 32 |
Hexagonal Nut for No.29-1 ,
36-3 |
01 |
 |
| 33 |
Clutch Lining |
01 |
 |
| 34.1 |
Set Screw for No.33 |
04 |
 |
| 35 |
Spring Washer for No.33-1 |
04 |
 |
| 36 |
Clutch Plate |
01 |
 |
| 37 |
Clutch Shaft |
01 |
 |
| 37.1 |
Clutch Shaft Sat |
01 |
 |
| 38 |
Ball Bearing (6202) |
02 |
|
| 39 |
Woodruff Key for No.37 |
02 |
|
| 40.1 |
Clutch Adjusting Sleeve |
01 |
 |
| 41 |
Pulley Side End Bracket |
01 |
 |
| 41.1 |
Pulley Side End Bracket
Assemble Sat. |
01 |
 |
| 42 |
Clutch End Cover Retaine |
03 |
 |
| 43 |
Set Screw for No.41-1 |
03 |
 |
| 44 |
Spring Washer for No.41-1 |
03 |
 |
| 45.1 |
Brake Shoe |
01 |
 |
| 46 |
Brake Adjusting Screw |
01 |
 |
| 47 |
Nut for 45-1 |
01 |
 |
| 48 |
Set Screw for No.45-1 |
01 |
 |
| 49.1 |
Clutch Lever with clutch
Point |
01 |
 |
| 50.1 |
Lever Pin |
01 |
 |
| 51 |
Stop Ring for 50-1 |
02 |
 |
| 54 S |
Lever Adjusting Screw Sat |
01 |
 |
| 54.1 |
Lever Adjusting Screw |
01 |
 |
| 55.1 |
Washer for No.54-1 |
01 |
 |
| 56 |
Spring for No 54-1 |
01 |
 |
| 58 |
Wing Nut for No.54-1 |
01 |
 |
| 59 |
Pulley Lock Nut |
01 |
 |
| 59.1 |
Spring Washer for No.59 |
01 |
 |
| 60 |
Slide Base |
01 |
 |
| 61 |
Base Pin |
01 |
 |
| 62 |
Stop Ring for No.61 |
02 |
 |
| 63S |
Belt Adjusting Bolt Sat |
01 |
 |
| 63 |
Belt Adjusting Bolt |
01 |
 |
| 64 |
Nut for No.63 |
02 |
 |
| 65 |
Spring Washer for No.63 |
02 |
 |
| 66 |
Vibrating Absorbing Rubber |
03 |
 |
| 67 |
Motor Set Screw |
03 |
 |
| 67S |
Motor set Screw sat (Washer
, Nut) |
03 |
 |
| 68 |
Plain Washer for No.67 |
03 |
 |
| 69 |
Spring Washer for No.67 |
03 |
 |
| 70 |
Nut for No.67 |
03 |
 |
| 71 |
Pulley
Available size:-
35,55,65,75,85,100,110,120 |
01 |
 |
| 76 |
Pulley Cover(Outer) |
01 |
 |
| 76.1 |
Set Screw for No.76 |
02 |
 |
| 76.2 |
Spring Washer for No.76 |
02 |
 |
| 77 |
Pulley Cover(Inner) |
01 |
 |
| 77.1 |
Set Screw for No.77 |
02 |
 |
| 77.2 |
Spring Washer for No.77 |
02 |
 |
| 80 |
Push Button Switch Only |
01 |
 |
| 81 |
Power Cord wire |
|
 |
| 82 |
Power Cord wire With 16
Amp. Molding Plug |
01 |
 |
| 84 |
PVC “C” Clamp |
04 |
 |
| 85 |
Wooden Screw |
02 |
 |
|
|
